A narrow block in Sydney doesn’t limit your duplex potential, it sharpens it. With site widths often sitting between 10 and 15 metres, the smartest duplex designs use vertical space, mirrored floor plans, and clever light wells to deliver two full-sized homes on a single compact lot.
For Sydney homeowners and investors, narrow block duplex builds offer a rare combination of capital growth, dual-income potential, and modern liveable design without leaving established suburbs.
This guide covers eight proven duplex design ideas, what defines a narrow block, key council rules, realistic build costs, and how to choose the right builder for your project.
What Defines a Narrow Block in Sydney
Across most Sydney councils, a narrow block is generally considered any residential lot with a street frontage of 12.5 metres or less. These lots are common in suburbs developed before the 1970s and in newer infill subdivisions where larger parcels have been split for higher-density housing. Sydney’s tightening lot sizes have made narrow block builds a mainstream housing format, and our guide to narrow block home design explains how site dimensions shape every design decision from layout to street appeal.
Typical Narrow Block Widths and Frontages
Narrow blocks in Sydney typically fall into three brackets. Lots between 10 and 12 metres wide suit attached side-by-side duplexes with mirrored layouts. Lots between 7 and 10 metres are usually developed as multi-storey duplexes with stacked or rear-loaded designs. Anything under 7 metres frontage almost always requires creative vertical solutions and careful council negotiation.
Common Narrow Block Locations Across Sydney
Narrow blocks are widespread in inner-west suburbs like Marrickville, Dulwich Hill, and Earlwood, southern suburbs including Rockdale and Kogarah, and northern areas such as Ryde and Eastwood. Many of these lots were originally subdivided for single workers’ cottages and now command strong land value, making duplex development a popular path to unlock dual-occupancy returns.
Smart Duplex Design Ideas for Narrow Sydney Blocks
The eight design approaches below address the three biggest challenges of narrow lot duplex builds: maximising usable floor area, getting natural light into the middle of long thin homes, and creating privacy between two attached dwellings. Each idea has been used successfully across Sydney’s metropolitan councils.
1. Mirrored Side-by-Side Floor Plans
Mirrored layouts place identical floor plans against a shared central wall, with each dwelling reflecting the other. This is the most common narrow block duplex format because it maximises symmetry, simplifies engineering, and balances street appeal. Bedrooms typically sit against the party wall to reduce noise transfer, while living areas open toward the side boundary or rear garden for natural light.
2. Multi-Storey Vertical Layouts
When width is tight, build up. Two and three-storey duplex designs allow you to deliver four-bedroom homes on lots as narrow as 8 metres per dwelling. Garages, laundries, and storage sit at ground level, living areas occupy the middle floor, and bedrooms fill the upper level. Vertical layouts also create opportunities for elevated balconies and rooftop terraces with district views.
3. Open-Plan Living to Maximise Width
Open-plan kitchen, dining, and living zones make narrow homes feel substantially wider than their measured dimensions. Removing internal walls allows light to travel from front to back, and a single continuous floor finish visually stretches the space. Galley kitchens against one side wall preserve usable circulation, while sliding doors at the rear blur the line between indoor and outdoor zones.
4. Skylights and Internal Voids for Natural Light
Long, narrow homes tend to suffer from dark middle rooms. Skylights over stairwells, central voids above living areas, and clerestory windows along party walls solve this without compromising privacy. Double-height voids also create a sense of volume that makes compact footprints feel generous, which is particularly valuable in homes under 180 square metres per dwelling.
5. Contemporary Street-Facing Façades

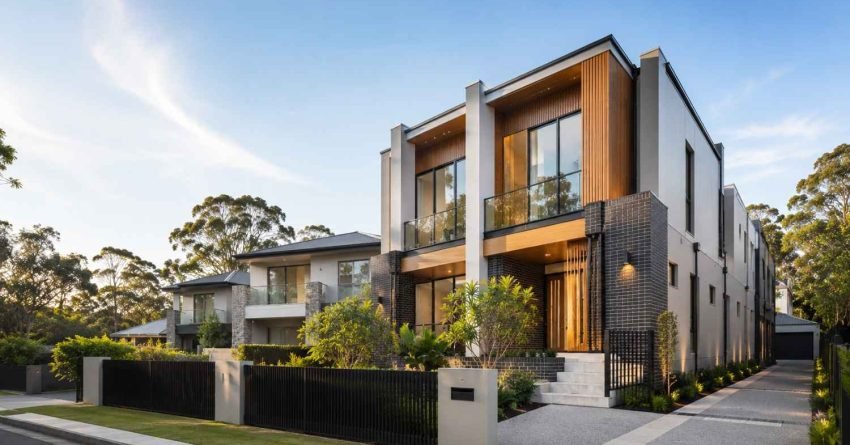

A strong façade lifts perceived value on resale and rental. Modern narrow block duplexes typically combine rendered or face-brick lower levels with lightweight cladding above, vertical battens for warmth, and feature windows that conceal the mirrored design behind a unified street presentation. Subtle asymmetry, such as offset entries or staggered balcony lines, prevents the build from looking like two identical boxes pushed together.
6. Integrated Courtyards and Compact Outdoor Areas
Outdoor space is non-negotiable in Sydney, even on narrow blocks. Courtyard gardens at the rear, side return alfrescos, and first-floor balconies all deliver usable private outdoor zones without requiring large backyards. Built-in planters, pergolas, and retractable awnings extend the seasons these spaces can be used and add visible value during inspections.
7. Built-In Storage and Joinery Solutions
Custom joinery is the silent superpower of narrow block living. Under-stair storage, full-height wardrobes, integrated study nooks, and benchtop appliance garages reclaim floor area that would otherwise be lost to standalone furniture. Investing 3 to 5 per cent of your build budget in built-ins typically pays back in liveability and resale appeal.
8. Energy-Efficient Passive Design Features
Passive design ideas like correct solar orientation, cross-ventilation, double-glazed windows, and high-performance insulation cost relatively little to incorporate at design stage but cut running costs significantly over the life of the home. Sydney’s climate rewards north-facing living areas, eaves sized to block summer sun, and thermal mass in lower-level slabs. Each of these layouts works hardest when paired with the right structural approach, and our complete resource on duplex design and construction covers the engineering, planning, and finishing decisions that turn a clever idea into a buildable home.
Council and Planning Considerations for Narrow Duplex Blocks
Sydney council rules are the single biggest variable in narrow block duplex feasibility. Lot size minimums, setback requirements, height limits, and floor space ratios all change between LGAs, and some councils require attached duplex applications to follow a different DA pathway than detached pairs.
Setback, Height, and Boundary Rules
Most Sydney councils require minimum side setbacks of 900mm to 1.5 metres, front setbacks of 4.5 to 6 metres, and overall height limits between 8.5 and 9.5 metres. Floor space ratios on narrow lots typically sit between 0.5:1 and 0.65:1, which directly caps your total build area. Confirming these controls before design concept is the only way to avoid expensive redesigns.
Subdivision and Torrens Title Options
Torrens title subdivision creates two separately saleable lots, which significantly improves end value compared to strata title. Many Sydney councils now allow Torrens subdivision of duplexes provided each new lot meets minimum width and area requirements. Setback and height controls vary significantly between LGAs, so our breakdown of council approval for duplexes walks through DA pathways, complying development rules, and timeframes specific to Sydney councils.
Cost Considerations for Narrow Block Duplex Builds
Narrow block duplex builds in Sydney generally range from $1.2 million to $2.4 million for the pair, depending on design complexity, finishes, and site conditions. Per square metre rates typically sit between $3,200 and $4,500 for standard inclusions, rising toward $5,500 for high-end specifications. Tight site access often adds 5 to 10 per cent to base costs due to crane hire, traffic management, and slower material handling.
Common cost variables include rock excavation, retaining walls on sloping sites, service relocations, and tree removal under council protections. Allow a contingency of at least 10 per cent on a narrow block project because hidden site costs are far more frequent than on standard lots. Budget realism is the difference between a finished duplex and a stalled one, and our detailed duplex build costs Sydney guide breaks down per-square-metre rates, site cost variables, and typical inclusions for narrow lots.
Choosing a Builder for Your Narrow Block Duplex
Narrow block duplex construction demands a builder with proven experience managing tight site access, mirrored engineering, and council negotiations across multiple Sydney LGAs. Look for fixed-price contracts, transparent cost breakdowns, in-house design coordination, and recent reference projects on similar lot widths. Ask specifically about their experience with party wall fire ratings, acoustic compliance under the BCA, and Torrens subdivision certification, because these are the technical areas where inexperienced builders cause budget overruns.
When you’re ready to translate these design ideas into a real project, our renovation and build services team coordinates design, approvals, and construction under one transparent fixed-price agreement.
Conclusion
Narrow block duplex design rewards smart layout decisions, vertical thinking, and disciplined planning across council, cost, and construction layers. The right design unlocks dual-income potential and strong capital growth from a compact Sydney lot.
From mirrored floor plans to passive design features and Torrens subdivision pathways, every choice compounds the long-term value of your finished build when handled correctly from concept stage.
We’re ready to help you plan, design, and build your narrow block duplex with Sydney Home Renovation, combining transparent pricing, experienced project coordination, and quality construction from start to finish.
Frequently Asked Questions
What is the minimum block width for a duplex in Sydney?
Most Sydney councils require a minimum total lot width of 12 to 15 metres for a duplex, though some allow narrower attached duplexes under complying development rules. Always confirm with your specific council before purchase.
Can you build a duplex on a 10-metre wide block in Sydney?
Yes, multi-storey vertical duplex designs can fit on 10-metre wide blocks in many Sydney LGAs, typically as two-storey attached pairs. Council setback and FSR controls will determine the final achievable floor area.
Is a narrow block duplex a good investment in Sydney?
Narrow block duplexes often deliver strong returns through dual rental income and Torrens subdivision uplift. Yields and resale value depend on suburb fundamentals, build quality, and whether the lots can be separately titled.
How long does a narrow block duplex build take in Sydney?
A typical Sydney narrow block duplex takes 10 to 14 months from site start to handover, plus 4 to 8 months for design and council approvals. Tight site access and weather delays can extend the construction timeline.
Do I need a DA for a narrow block duplex in Sydney?
Most narrow block duplexes require a Development Application unless they qualify under the Low Rise Housing Diversity Code as complying development. Eligibility depends on lot size, zoning, and council-specific overlays.
