The kitchen layout you choose shapes everything — how you cook, how you move, and how much your renovation will cost. Whether you are working with a compact apartment in Surry Hills or a sprawling family home in the Hills District, understanding the six basic kitchen layouts is the single most important step before any renovation begins.
Most Sydney homeowners start planning around aesthetics — benchtop finishes, cabinet colours, appliance brands. But layout decisions made early determine whether your kitchen functions brilliantly for decades or frustrates you every single day.
This guide explains each of the six kitchen layouts in plain terms, covering how they work, who they suit, their trade-offs, and how each one affects your renovation budget in Sydney.
What Is a Kitchen Layout and Why Does It Matter?
A kitchen layout is the spatial arrangement of your cabinetry, appliances, and work surfaces within a room. It defines how cooking zones, storage, and traffic flow are organised — and it is the structural foundation every other design decision is built upon.
Choosing the wrong layout for your space creates problems that no amount of premium cabinetry or high-end appliances can fix. A kitchen that looks beautiful in a showroom can feel cramped, inefficient, or awkward once it is installed in a room that was never suited to that configuration.
For Sydney homeowners planning a renovation, layout selection also has a direct impact on cost. More complex layouts require more cabinetry runs, additional plumbing relocations, and greater labour hours — all of which affect your final budget.
How Kitchen Layout Affects Workflow and Functionality
Kitchen workflow refers to how efficiently you move between the three primary task zones: food preparation, cooking, and cleaning. A well-planned layout minimises unnecessary movement between these zones, reduces congestion during meal preparation, and accommodates multiple users without conflict.
Poor workflow is one of the most common complaints homeowners raise after a renovation. It typically results from a layout that was chosen based on visual appeal rather than how the household actually uses the kitchen. A family of five preparing meals together has fundamentally different workflow needs than a single professional who cooks occasionally.
The right layout creates a natural rhythm between zones. The wrong one creates bottlenecks, wasted steps, and frustration — regardless of how much was spent on finishes.

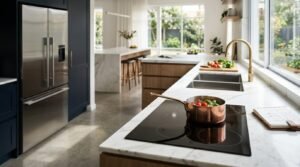

The Work Triangle Concept and Modern Kitchen Planning
The kitchen work triangle is a planning principle developed in the 1940s that connects the three primary work zones — the refrigerator, the sink, and the cooktop — into a triangular path. The principle holds that when these three points are positioned efficiently, kitchen workflow improves significantly.
Traditional work triangle guidelines recommend that each leg of the triangle measure between 1.2 metres and 2.7 metres, with the total perimeter falling between 4 metres and 8 metres. When any leg is too short, the kitchen feels cramped. When it is too long, unnecessary movement becomes tiring.
Modern kitchen planning has evolved beyond the strict triangle. Open-plan living, kitchen islands, and multi-cook households have introduced the concept of work zones — dedicated areas for preparation, cooking, cleaning, and storage — which offer greater flexibility for contemporary Sydney homes. Both frameworks remain useful, and understanding them helps you evaluate each of the six layouts more critically.

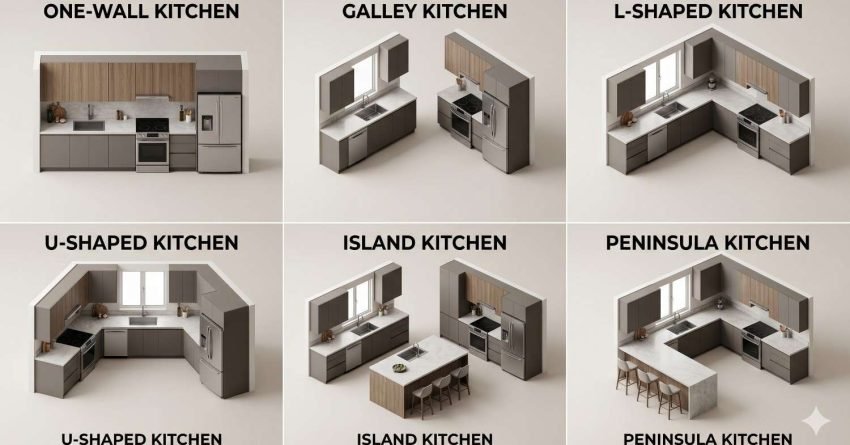

The Six Basic Kitchen Layouts
Every kitchen, regardless of size, style, or budget, is built around one of six fundamental layout configurations. Each has a distinct spatial logic, a set of strengths, and specific limitations. Understanding all six gives you the framework to make an informed decision for your home.
1. The Single-Wall Kitchen Layout
What Is a Single-Wall Kitchen?
A single-wall kitchen is a layout where all cabinetry, appliances, and work surfaces are positioned along one wall. It is the most compact of the six configurations, consolidating the entire kitchen into a single linear run.
This layout is common in studio apartments, open-plan living spaces, and secondary kitchens where floor space is limited. It is also frequently used in granny flats and investment properties across Sydney where functionality must be delivered within a minimal footprint.
Best Room Sizes and Configurations for Single-Wall Kitchens
Single-wall kitchens perform best in rooms where the kitchen is not the primary focus of the space — typically open-plan living and dining areas where the kitchen occupies one wall and the remaining floor space serves other functions.
A minimum wall length of 2.4 metres is generally required to accommodate a functional single-wall kitchen with a sink, cooktop, and refrigerator. For a more comfortable configuration with adequate bench space and storage, 3 metres or more is preferable. The layout works poorly in rooms where the kitchen wall is interrupted by windows, doors, or structural elements that break the run.
Pros and Cons of the Single-Wall Layout
The single-wall layout is cost-effective to install because it involves only one cabinetry run, minimal plumbing complexity, and straightforward electrical work. It suits tight budgets and small spaces well.
The primary limitation is bench space. With all elements on one wall, preparation areas are often squeezed between the sink and cooktop, leaving little room for comfortable meal preparation. Storage capacity is also restricted compared to layouts that use multiple walls. The work triangle effectively collapses into a straight line, which can make workflow feel linear and limiting for anyone who cooks regularly.
2. The Galley Kitchen Layout
What Is a Galley Kitchen?
A galley kitchen is a layout featuring two parallel runs of cabinetry and work surfaces facing each other, with a corridor or walkway between them. The name derives from the narrow, efficient kitchens found on ships and aircraft, where maximum functionality must be achieved within minimal width.
Galley kitchens are among the most efficient layouts for serious cooking. The parallel configuration places all work zones within close reach, reducing unnecessary movement and creating a natural workflow between preparation, cooking, and cleaning.
Ideal Spaces for a Galley Kitchen Layout
Galley kitchens suit long, narrow rooms where two parallel walls are available without obstruction. A minimum corridor width of 900 millimetres between the two runs is required for comfortable single-person use. For households where two people cook simultaneously, 1.2 metres of clearance is recommended to allow both users to work without obstruction.
This layout is well-suited to terrace houses, older Sydney homes with separate kitchen rooms, and apartment renovations where the kitchen occupies a dedicated corridor-style space. It is less suited to open-plan living areas where one end of the galley is open to a dining or living zone, as traffic passing through the kitchen can disrupt workflow.
Pros and Cons of the Galley Kitchen Layout
The galley layout delivers excellent workflow efficiency and generous storage across two full cabinetry runs. It is a practical choice for keen cooks and households that prioritise function over social interaction in the kitchen.
The main limitation is its closed, corridor-like feel. Galley kitchens can feel confined, particularly when both ends are enclosed by walls. They also present challenges for open-plan living, as the layout does not naturally integrate with dining or living areas. For Sydney homeowners renovating with resale in mind, a galley kitchen in an otherwise open-plan home can feel dated compared to island or L-shaped configurations.
3. The L-Shaped Kitchen Layout
What Is an L-Shaped Kitchen?
An L-shaped kitchen is a layout where cabinetry and work surfaces extend along two adjacent walls, forming an L configuration. It is one of the most versatile and widely used kitchen layouts in Australian homes, offering a practical balance between workflow efficiency, storage capacity, and spatial flexibility.
The corner junction of the L creates a natural separation between work zones — typically placing the sink and preparation area on one leg and the cooktop and oven on the other. This arrangement supports an efficient work triangle and accommodates multiple users without significant congestion.
When to Choose an L-Shaped Kitchen Layout
The L-shaped layout suits a wide range of room sizes and shapes. It works well in square rooms, open-plan living areas, and spaces where the kitchen needs to integrate with a dining or living zone without a physical barrier.
For Sydney homeowners renovating open-plan ground floors, the L-shaped kitchen is a natural fit. One leg of the L typically runs along an external or internal wall, while the other leg faces the living or dining area, creating a semi-open kitchen that feels connected to the rest of the home without fully exposing the work zone.
This layout also accommodates a kitchen island effectively. When sufficient floor space is available — generally a minimum of 900 millimetres of clearance on all sides of the island — an L-shaped kitchen with an island becomes one of the most functional and visually appealing configurations available.
Pros and Cons of the L-Shaped Kitchen Layout
The L-shaped layout offers strong workflow, good storage across two walls, and natural integration with open-plan living. It is adaptable to both small and large rooms and supports the addition of an island when space permits.
The primary challenge is the corner cabinet. The junction where the two legs of the L meet creates a deep corner that can be difficult to access efficiently. Standard corner solutions — lazy Susans, pull-out carousels, or Le Mans units — add cost to the cabinetry budget but significantly improve usability. Poorly planned corner storage is one of the most common functional complaints in L-shaped kitchens.
4. The U-Shaped Kitchen Layout
What Is a U-Shaped Kitchen?
A U-shaped kitchen is a layout where cabinetry and work surfaces extend along three walls, forming a U configuration. It is the most storage-rich and work-surface-generous of the six basic layouts, wrapping the cook in a continuous run of bench space and cabinetry on three sides.
The U-shaped layout creates a highly efficient work triangle by positioning the sink, cooktop, and refrigerator on three separate walls. This separation of primary work zones minimises congestion and allows multiple users to work simultaneously without interfering with each other.
Room Requirements for a U-Shaped Kitchen
The U-shaped layout requires a room with sufficient width to accommodate cabinetry on three walls while maintaining a functional corridor between the two parallel runs. A minimum internal width of 2.4 metres between the two parallel cabinetry runs is required for comfortable use. Rooms narrower than this will produce a corridor that feels cramped and restricts the ability to open appliance doors fully.
For larger rooms, the U-shaped layout can be extended generously, with each leg of the U accommodating dedicated zones for preparation, cooking, and cleaning. In Sydney homes with larger kitchen footprints — particularly in newer builds in the Hills District, Sutherland Shire, or the Northern Beaches — the U-shaped layout is a popular choice for families who cook regularly and value maximum storage.
Pros and Cons of the U-Shaped Kitchen Layout
The U-shaped layout delivers the greatest amount of bench space and storage of any of the six configurations. It supports excellent workflow, accommodates multiple cooks comfortably, and provides dedicated zones for every kitchen task.
The limitations are spatial. The U-shaped layout requires a larger room than most other configurations, making it unsuitable for small apartments or narrow terrace houses. It also creates two corner junctions — both of which require corner cabinet solutions — adding to cabinetry costs. The enclosed nature of the U can also feel isolating in open-plan homes, as the cook is positioned with their back to the living or dining area.
5. The Island Kitchen Layout
What Is an Island Kitchen Layout?
An island kitchen layout incorporates a freestanding bench unit — the island — positioned in the centre of the kitchen floor space, separate from the perimeter cabinetry. The island can serve as additional preparation space, a secondary sink location, a cooktop position, a breakfast bar, or a combination of these functions.
Island kitchens are strongly associated with open-plan living and are among the most sought-after configurations in contemporary Sydney home renovations. They create a natural social hub within the kitchen, allowing the cook to face the living or dining area while preparing meals.
Space and Clearance Requirements for Kitchen Islands
Kitchen islands require generous floor space to function safely and comfortably. A minimum clearance of 900 millimetres on all sides of the island is required for comfortable movement. Where the island is positioned between perimeter cabinetry and a wall or another run of cabinetry, 1.2 metres of clearance is recommended to allow two people to pass each other comfortably and to open appliance doors without obstruction.
The island itself should be a minimum of 900 millimetres wide and 1.2 metres long to provide useful bench space. Smaller islands often become obstacles rather than functional additions. For Sydney homes where open-plan living areas are common — particularly in post-war homes that have been extended or renovated — confirming that the floor plan can genuinely accommodate an island before committing to the layout is essential.
Pros and Cons of the Island Kitchen Layout
The island layout delivers exceptional bench space, strong social integration with open-plan living, and significant visual impact. It is one of the most effective layouts for adding perceived value to a Sydney home, particularly in the mid-to-upper renovation market.
The cost implications are significant. An island adds cabinetry, benchtop material, and potentially plumbing and electrical work if a sink or cooktop is incorporated. Installation complexity increases, and the island benchtop — often a feature material such as stone or engineered quartz — represents a meaningful portion of the renovation budget. For homeowners working within a tight budget, the island is often the first element to be reconsidered.
6. The Peninsula Kitchen Layout
What Is a Peninsula Kitchen Layout?
A peninsula kitchen layout is similar to an island layout, but instead of a freestanding bench unit, the peninsula is connected to the perimeter cabinetry at one end. It extends into the room from one of the existing cabinetry runs, creating a partial enclosure of the kitchen zone.
The peninsula functions as a connected island — providing additional bench space, a breakfast bar overhang, or a secondary work zone — while requiring less floor space than a fully freestanding island. It is a practical alternative for open-plan homes where the floor plan cannot accommodate the clearance requirements of a true island.
When a Peninsula Works Better Than an Island
A peninsula is the preferred choice when the kitchen floor plan offers sufficient depth to extend a cabinetry run into the room but not enough width to maintain safe clearance on all four sides of a freestanding island. It is also a practical solution when the budget does not extend to the additional cabinetry, benchtop, and potential plumbing costs of a full island.
For Sydney homeowners renovating terrace houses, semi-detached homes, or apartments with open-plan living areas, the peninsula frequently delivers the social and functional benefits of an island — the cook facing the living area, a breakfast bar for casual dining — without the spatial and cost demands of a freestanding unit.
Pros and Cons of the Peninsula Kitchen Layout
The peninsula layout offers strong social integration, additional bench space, and a visual separation between the kitchen and living zones without requiring the floor space of a full island. It is generally less expensive to install than an island because it connects to existing cabinetry rather than requiring a fully independent unit.
The limitation is access. A peninsula is accessible from three sides rather than four, which can create congestion in busy households. The connected end also reduces the sense of openness that a freestanding island provides. For households that prioritise traffic flow and multi-directional access around the central bench, a peninsula may feel restrictive compared to a true island.

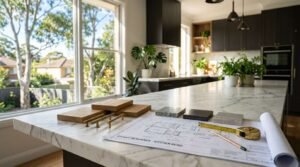

How to Choose the Right Kitchen Layout for Your Home
Selecting the right kitchen layout is not simply a matter of choosing the one that looks best in a magazine. It requires an honest assessment of your room dimensions, your household’s cooking habits, your traffic flow requirements, and your renovation budget.
Matching Kitchen Layout to Room Size and Shape
Room dimensions are the primary constraint on layout selection. Before any other consideration, measure your kitchen floor plan accurately — including the position of windows, doors, and any structural elements that cannot be moved.
As a general guide: single-wall and galley layouts suit narrow or compact rooms; L-shaped layouts suit square or rectangular rooms of moderate size; U-shaped layouts require larger rooms with sufficient width between parallel runs; island and peninsula layouts require open-plan spaces with generous floor area. Attempting to force a layout into a room that cannot physically accommodate it comfortably is one of the most common and costly renovation mistakes.
Considering Traffic Flow and Household Usage
Traffic flow through and around the kitchen is a critical planning consideration, particularly in open-plan homes where the kitchen is a thoroughfare between living zones. Layouts that position the primary work zone in the path of regular foot traffic — such as a galley kitchen with an open end leading to a living area — can create persistent workflow disruption.
Consider how many people use the kitchen simultaneously. A single-person household has very different needs from a family of four or a household where two adults cook together regularly. Layouts with greater bench depth and multiple access points — U-shaped, island, and peninsula configurations — accommodate multi-user cooking more comfortably than single-wall or galley layouts.
Kitchen Layout and Resale Value in Sydney Homes
Kitchen layout has a measurable influence on property appeal and resale value in the Sydney market. Open-plan kitchens with island or peninsula configurations consistently attract strong buyer interest, particularly in the family home segment across suburbs in the Inner West, North Shore, and Eastern Suburbs.
For investment properties and rental renovations, a functional L-shaped or galley kitchen that maximises storage and bench space within a modest footprint typically delivers better return on investment than a more complex layout that adds cost without proportional rental yield improvement. Understanding the relationship between layout choice and market expectations in your specific Sydney suburb is an important part of renovation planning.
Kitchen Layout Comparison: Which Layout Is Right for You?
| Layout | Minimum Space Required | Workflow Efficiency | Storage Capacity | Social Integration | Relative Cost | Best Suited To |
| Single-Wall | Small (from 2.4m wall) | Moderate | Low | Low | Lowest | Studios, granny flats, investment properties |
| Galley | Narrow room (min. 900mm corridor) | High | Moderate-High | Low | Low-Moderate | Terrace houses, apartments, dedicated kitchen rooms |
| L-Shaped | Moderate (square or rectangular room) | High | Moderate-High | Moderate | Moderate | Most Sydney homes, open-plan living |
| U-Shaped | Large (min. 2.4m between runs) | Very High | Highest | Low-Moderate | Moderate-High | Large family homes, dedicated kitchen rooms |
| Island | Large open-plan (min. 900mm clearance all sides) | Very High | High | Very High | High | Open-plan family homes, mid-to-upper renovations |
| Peninsula | Moderate open-plan | High | High | High | Moderate-High | Open-plan homes with limited island clearance |
How Kitchen Layout Affects Renovation Costs in Sydney
Kitchen layout is one of the most significant drivers of renovation cost — yet it is frequently underestimated during the planning phase. The configuration you choose determines the linear metres of cabinetry required, the complexity of plumbing and electrical work, the amount of benchtop material needed, and the labour hours involved in installation.
Layout Complexity and Its Impact on Labour Costs
Simpler layouts with fewer cabinetry runs and no island or peninsula components are less expensive to install. A single-wall kitchen involves one cabinetry run, straightforward plumbing connections, and minimal electrical complexity. A U-shaped kitchen with an island involves four cabinetry runs, multiple corner solutions, potentially two sink locations, and significantly greater installation time.
In Sydney, kitchen renovation labour costs reflect the complexity of the work involved. Trades including cabinetmakers, plumbers, electricians, and tilers all price their work based on the scope and difficulty of the installation. A layout change that adds a second plumbing point — such as incorporating a sink into an island — adds plumber attendance, additional pipework, and potentially drainage modifications to the project cost.
Cabinetry, Benchtop, and Plumbing Costs by Layout Type
Cabinetry is typically the largest single cost component in a kitchen renovation. The more linear metres of cabinetry your layout requires, the higher the cabinetry budget. Corner cabinet solutions — required in L-shaped and U-shaped layouts — add cost per unit compared to standard straight-run cabinets.
Benchtop costs scale directly with surface area. An island or peninsula adds a significant benchtop component to the budget, particularly when a feature material such as stone, engineered quartz, or Dekton is specified. For Sydney renovations, stone benchtops for a standard island can add between $2,000 and $6,000 or more to the project cost depending on material selection, thickness, and edge profile.
Plumbing costs are influenced by whether the layout requires a single sink location or multiple points. Relocating an existing sink — even within the same kitchen — involves plumber attendance, pipework modifications, and potentially waterproofing work, adding to the overall project budget.
Which kitchen layout is easiest to renovate on a budget?
For Sydney homeowners working within a defined budget, the single-wall and galley layouts offer the most cost-effective renovation pathway. Both configurations minimise cabinetry runs, reduce corner cabinet requirements, and limit plumbing complexity. The L-shaped layout represents a strong middle ground — delivering good workflow and storage at a moderate cost — and is the most commonly recommended layout for budget-conscious renovations that still require a functional, attractive result.
Kitchen Layout Planning Tips for Sydney Homeowners
Working With Your Existing Floor Plan
The most cost-effective kitchen renovations work with the existing floor plan rather than against it. Relocating walls, moving plumbing stacks, or reconfiguring structural elements adds significant cost and complexity to any project. Before committing to a layout that requires structural changes, obtain a clear understanding of what those changes will cost and whether the functional improvement justifies the additional investment.
In many Sydney homes — particularly older terrace houses, semi-detached homes, and post-war brick homes — the existing kitchen footprint can accommodate a meaningful layout improvement without structural intervention. An experienced kitchen renovation contractor will assess your existing floor plan and identify the layout options that deliver the best functional outcome within your current structure.
When to Consult a Kitchen Renovation Specialist
Kitchen layout decisions have long-term consequences. A layout that works well for your current household may not suit a future sale, a growing family, or a change in how you use the space. Consulting a kitchen renovation specialist before finalising your layout choice is a practical investment that can prevent costly mistakes.
At Sydney Home Renovation, we work with homeowners across Sydney to assess existing floor plans, identify the layout options that suit the space and budget, and provide transparent cost guidance before any work begins. Understanding the full cost implications of your layout choice — including cabinetry, benchtop, plumbing, electrical, and labour — is essential to planning a renovation that stays on budget and delivers lasting value.
Conclusion
The six basic kitchen layouts — single-wall, galley, L-shaped, U-shaped, island, and peninsula — each offer a distinct approach to workflow, storage, and spatial planning. The right choice depends on your room dimensions, household habits, open-plan requirements, and renovation budget, not simply on what looks appealing in a showroom.
Layout decisions made early in the planning process shape every cost that follows — from cabinetry runs and benchtop area to plumbing complexity and labour hours. Getting this decision right from the start is the most effective way to protect your renovation budget and maximise the long-term value of your kitchen.
At Sydney Home Renovation, we help Sydney homeowners navigate layout selection with honest, practical guidance backed by real construction expertise. Contact our team today to discuss your kitchen floor plan and find the layout that works best for your home, your household, and your budget.
Frequently Asked Questions
What is the most popular kitchen layout in Australia?
The L-shaped kitchen layout is the most widely used configuration in Australian homes. It suits a broad range of room sizes, integrates well with open-plan living, and delivers a practical balance of workflow efficiency, storage, and cost.
What is the most efficient kitchen layout for cooking?
The U-shaped kitchen layout is generally considered the most efficient for cooking because it positions the sink, cooktop, and refrigerator on three separate walls, creating a compact and highly functional work triangle with minimal unnecessary movement between zones.
Which kitchen layout is best for small spaces?
The single-wall layout is best suited to small spaces, as it consolidates all cabinetry, appliances, and bench space into one wall. For slightly larger narrow rooms, the galley layout delivers better workflow and storage while still working within a compact footprint.
What is the difference between a galley and single-wall kitchen?
A single-wall kitchen places all elements along one wall, while a galley kitchen uses two parallel walls facing each other with a corridor between them. The galley layout provides significantly more bench space and storage, and supports a more efficient work triangle than the single-wall configuration.
Is an island or peninsula better for an open-plan kitchen?
An island is better when the floor plan provides sufficient clearance on all four sides — a minimum of 900 millimetres. A peninsula is the practical alternative when floor space is limited, as it connects to existing cabinetry and requires clearance on only three sides while still delivering social
