Sydney homeowners can choose from four main categories of granny flats: custom-built, prefabricated, modular, and flat pack, each with distinct cost ranges, construction timelines, and design flexibility. Layouts range from compact studios under 40sqm to full two-bedroom dwellings at the maximum 60sqm allowed under NSW regulations.
Choosing the right type affects everything from your upfront build cost to long-term rental yield and property value. With Sydney’s housing market pushing more owners toward secondary dwellings, understanding these differences is a practical first step.
This guide breaks down every type of granny flat by construction method, layout, material, and placement. You will also find current Sydney cost ranges, approval pathways, and a decision framework to match the right granny flat to your block, budget, and goals.
What Is a Granny Flat?
A granny flat is a self-contained secondary dwelling located on the same lot as an existing residential property. In NSW, it is formally classified as a “secondary dwelling” under the State Environmental Planning Policy (Affordable Rental Housing) 2009, now consolidated into the Housing SEPP 2021. It must include its own kitchen, bathroom, and living area to qualify.
Under NSW legislation, a granny flat can be a maximum of 60 square metres in internal floor area, or whichever is the lesser of 60sqm or the size permitted by the relevant council controls. The property must be on a lot zoned for residential use with a minimum lot size, typically 450 square metres in most Sydney council areas.
Granny flats serve multiple purposes. Homeowners build them for ageing parents, adult children, rental income, or to increase overall property value. In Sydney, where median weekly rents for a one-bedroom unit sit well above $500 in many suburbs, a well-built granny flat can generate meaningful returns while adding a tangible asset to the property.
The term “granny flat” covers a wide range of building types. The differences between them come down to how they are constructed, what materials they use, how they are laid out, and whether they are physically attached to or separated from the main house.

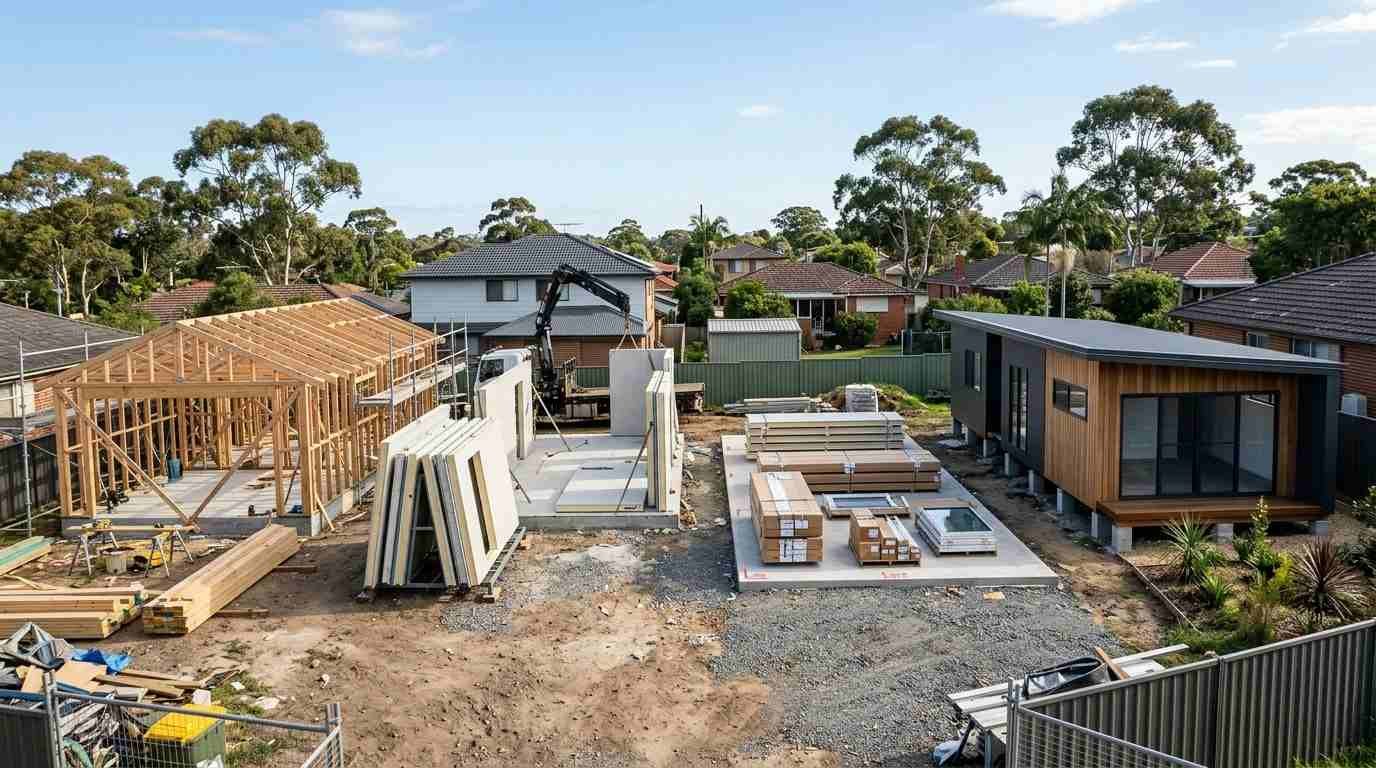

Types of Granny Flats by Construction Method
Construction method is the single biggest factor that determines your granny flat’s cost, build timeline, design flexibility, and long-term durability. Each method suits different budgets, site conditions, and owner priorities.
Custom-Built Granny Flats
A custom-built granny flat is constructed entirely on-site from the ground up, using traditional building methods. A licensed builder manages the full process: slab, framing, roofing, fit-out, and finishing.
This method offers the most design freedom. You can tailor the floor plan, ceiling heights, window placements, and finishes to suit your block’s shape, orientation, and your personal preferences. If your site has unusual dimensions, steep slopes, or specific setback constraints, custom building is often the most practical solution.
The trade-off is cost and time. Custom builds in Sydney typically range from $120,000 to $200,000+ depending on size, site conditions, and specification level. Construction timelines run 12 to 20 weeks on average, though site preparation, council processes, and weather can extend this.
Custom-built granny flats suit homeowners who want full control over design, are building on challenging sites, or plan to use the dwelling long-term for family or high-yield rental.
Prefabricated (Kit) Granny Flats
Prefabricated or “kit” granny flats arrive as pre-cut components manufactured off-site. The wall frames, roof trusses, and cladding panels are delivered to your property and assembled by a builder or, in some cases, by the homeowner with trade support.
Kit granny flats reduce material waste and can shorten the on-site build phase. Prices for a kit supply package typically start from $40,000 to $70,000, but this covers the kit only. You still need to budget for site preparation, slab, plumbing, electrical, internal fit-out, and council fees. The total installed cost in Sydney usually lands between $90,000 and $150,000.
Design options are more limited than a custom build. Most kit suppliers offer a set range of floor plans, and modifications may attract additional charges. However, the standardised manufacturing process means consistent quality and fewer surprises during construction.
Kit granny flats work well for homeowners on a moderate budget who want a faster path to completion and are comfortable selecting from a pre-designed range.
Modular Granny Flats
Modular granny flats are fully constructed in a factory, then transported to your site as one or more complete modules. Once the slab is ready, the modules are craned into position and connected to services. On-site work is minimal compared to other methods.
The key advantage is speed. From slab completion, a modular granny flat can be installed and liveable within one to four weeks. Factory construction also means the build is not affected by weather delays, and quality control is tightly managed in a controlled environment.
Modular granny flats in Sydney generally cost between $100,000 and $180,000 fully installed, depending on size, specification, and site access. Access is a critical consideration. The modules need to be transported by truck and lifted by crane, so narrow driveways, overhead power lines, or limited street access can add significant cost or rule out this option entirely.
This method suits homeowners who prioritise speed, want minimal disruption to their daily routine, and have a site with good access for delivery and crane operation.
Flat Pack Granny Flats
Flat pack granny flats sit between kit homes and modular builds. Components are manufactured off-site as flat panels, including wall sections, floor cassettes, and roof panels, then delivered and assembled on-site.
Assembly is faster than a traditional kit because the panels arrive as larger, pre-finished sections rather than individual framing members. A flat pack granny flat can typically be assembled on-site in four to eight weeks after the slab is poured.
Costs range from $80,000 to $140,000 fully installed in Sydney, depending on the supplier, size, and level of finish. Like kit homes, the base package price often excludes site works, services connections, and council fees, so it is important to get a clear breakdown of what is and is not included.
Flat pack granny flats are a good middle ground for homeowners who want faster construction than a custom build, more design flexibility than a full modular unit, and a competitive price point.
Types of Granny Flats by Design and Layout
The internal layout of your granny flat determines how liveable, rentable, and functional the space will be. NSW’s 60sqm cap means every square metre counts.
Studio Granny Flats
A studio granny flat combines the bedroom, living, and kitchen areas into a single open-plan space, with only the bathroom separated by walls. Typical studio layouts range from 25 to 40 square metres.
Studios are the most affordable granny flat type to build and the simplest to approve. They suit single occupants, short-term rental use, or properties where the available footprint is limited. In Sydney’s inner-west and eastern suburbs, where lot sizes are tighter, studios are a common choice.
The limitation is obvious: no bedroom privacy. This reduces appeal for couples, families, or tenants who work from home and need separation between living and sleeping areas.
One-Bedroom Granny Flats
A one-bedroom granny flat includes a separate enclosed bedroom, an open-plan kitchen and living area, and a bathroom. Floor areas typically range from 35 to 50 square metres.
This is the most popular granny flat layout in Sydney. It provides enough separation for comfortable long-term living while keeping the build cost manageable. One-bedroom granny flats attract strong rental demand across most Sydney suburbs, particularly from single professionals and couples.
The dedicated bedroom also makes the dwelling more suitable for ageing parents or adult children who need genuine privacy within the household.
Two-Bedroom Granny Flats
A two-bedroom granny flat uses the full 60sqm allowance to include two separate bedrooms, a combined kitchen and living area, a bathroom, and sometimes a small laundry space.
This layout maximises rental income potential. A two-bedroom granny flat in Sydney can command $400 to $600+ per week in rent depending on the suburb, finish level, and proximity to transport. It also suits families with children or shared living arrangements.
The trade-off is a higher build cost and a tighter floor plan. At 60sqm with two bedrooms, living spaces are compact. Thoughtful design, including built-in storage, efficient kitchen layouts, and good natural light, is essential to avoid the space feeling cramped.
Granny Flats With Separate Living Areas
Some granny flat designs within the 60sqm limit incorporate a distinct lounge or sitting area separate from the kitchen and dining zone. This is achieved through careful floor planning rather than additional square metres.
Designs that use L-shaped layouts, partial walls, or changes in floor level can create a sense of separation without adding walls. This layout appeals to tenants or family members who value defined living zones and makes the granny flat feel larger than its footprint suggests.
The cost difference compared to a standard open-plan layout is minimal. It comes down to design skill rather than extra materials.
Attached vs Detached Granny Flats
The physical relationship between your granny flat and the main house affects construction cost, privacy, approval requirements, and rental appeal.
Attached Granny Flats
An attached granny flat shares at least one wall with the existing house. Common configurations include converting a garage, extending the rear of the home, or building above an existing structure.
Attached granny flats can be more cost-effective because they share structural elements, roofing, and sometimes services with the main dwelling. They also work well on smaller lots where setback requirements make a detached structure difficult to position.
The downside is reduced privacy for both the main household and the granny flat occupant. Noise transfer through shared walls is a common concern. Attached granny flats may also require a development application (DA) rather than a complying development certificate (CDC), depending on the scope of work and council requirements.
Detached Granny Flats
A detached granny flat is a standalone structure with no physical connection to the main house. It sits separately on the lot, typically in the rear yard.
Detached granny flats offer the highest level of privacy and independence. They are generally preferred by tenants, which can translate to higher rental yields and lower vacancy rates. They also tend to add more perceived value to the property at resale.
The cost is higher than an attached option because the structure needs its own foundations, roof, and full services connections. You also need sufficient lot size to meet minimum setback requirements from boundaries and the main dwelling. In Sydney, most councils require a minimum 900mm setback from side and rear boundaries for a detached granny flat.
Types of Granny Flats by Material
The materials used for framing and cladding affect the granny flat’s durability, thermal performance, maintenance requirements, and overall cost.
Timber Granny Flats
Timber framing is the most common construction method for granny flats in Sydney. It is lightweight, cost-effective, and familiar to most residential builders. Timber-framed granny flats can be clad with weatherboard, fibre cement sheet, or rendered finishes.
Timber performs well in Sydney’s climate when properly treated and maintained. It offers good thermal insulation properties and is easy to modify or extend in the future. The main maintenance consideration is protection against termites, which requires appropriate treatment and ongoing inspection.
Brick and Block Granny Flats
Brick or concrete block construction provides excellent durability, fire resistance, and acoustic insulation. A brick granny flat requires minimal external maintenance and can last decades with very little upkeep.
The cost is higher than timber framing, and construction takes longer due to the bricklaying process and curing times. Brick granny flats also require more substantial footings, which adds to the slab cost. This method suits homeowners who prioritise longevity and low maintenance over speed and upfront savings.
Steel Frame Granny Flats
Steel framing is termite-proof, dimensionally stable, and increasingly popular in prefabricated and modular granny flat construction. Steel frames are manufactured to precise tolerances, which speeds up on-site assembly and reduces waste.
Steel-framed granny flats perform well structurally and are lighter than brick, reducing foundation requirements. The main consideration is thermal bridging. Steel conducts heat and cold more readily than timber, so additional insulation is needed to meet energy efficiency requirements under the National Construction Code.
Lightweight Cladding Granny Flats
Lightweight cladding systems, including fibre cement panels, Colorbond steel, and composite materials, are commonly paired with timber or steel frames. These systems are fast to install, cost-effective, and available in a wide range of finishes.
Lightweight cladding suits prefabricated and flat pack granny flats particularly well. It keeps the overall building weight down, which simplifies transport and reduces foundation costs. Modern cladding products offer strong weather resistance and can replicate the appearance of timber, render, or stone at a lower price point.
Granny Flat Costs in Sydney
Understanding the full cost picture prevents budget blowouts and helps you compare quotes accurately. Granny flat pricing in Sydney varies significantly based on type, size, site conditions, and finish level.
Cost Ranges by Type
| Granny Flat Type | Typical Sydney Cost Range (Fully Installed) |
| Studio (25-40sqm) | $80,000 – $130,000 |
| One-Bedroom (35-50sqm) | $100,000 – $160,000 |
| Two-Bedroom (50-60sqm) | $130,000 – $200,000+ |
| Custom-Built | $120,000 – $200,000+ |
| Prefabricated/Kit | $90,000 – $150,000 |
| Modular | $100,000 – $180,000 |
| Flat Pack | $80,000 – $140,000 |
These ranges reflect 2024-2025 Sydney market pricing and include site preparation, construction, and basic services connections. Premium finishes, difficult site access, or extensive earthworks will push costs toward the upper end.
What Affects the Final Price
Several factors create variation between the lowest and highest quotes you will receive.
Site slope and soil conditions determine foundation costs. A flat site with stable soil needs a standard slab. A sloping site or reactive clay may require engineered footings, retaining walls, or pier-and-beam construction, adding $5,000 to $30,000+ to the base cost.
Distance from existing services matters. If the main sewer, water, and electrical connections are close to the granny flat location, connection costs are lower. Long service runs across the property increase plumbing and electrical expenses.
Finish level is the most controllable cost variable. Standard fixtures, laminate benchtops, and basic tiling keep costs down. Stone benchtops, premium tapware, engineered timber flooring, and custom joinery can add $15,000 to $40,000 to a standard specification.
Hidden Costs to Budget For
Several costs sit outside the standard building quote and catch homeowners off guard.
Council and certification fees typically range from $2,000 to $8,000 depending on whether you use a complying development certificate or a full development application. A CDC through a private certifier is generally faster and less expensive than a DA through council.
Demolition and site clearing costs apply if you need to remove an existing shed, trees, or other structures. Tree removal in Sydney can cost $500 to $5,000+ per tree depending on size and species, and some trees may be protected under council regulations.
Landscaping and fencing after construction is often overlooked. Reinstating gardens, building privacy fencing between the granny flat and the main house, and creating a separate entrance pathway can add $3,000 to $15,000.
Stormwater management is a common additional requirement. Many Sydney councils require on-site stormwater detention or connection to the council stormwater system, which can cost $2,000 to $10,000 depending on the solution required.

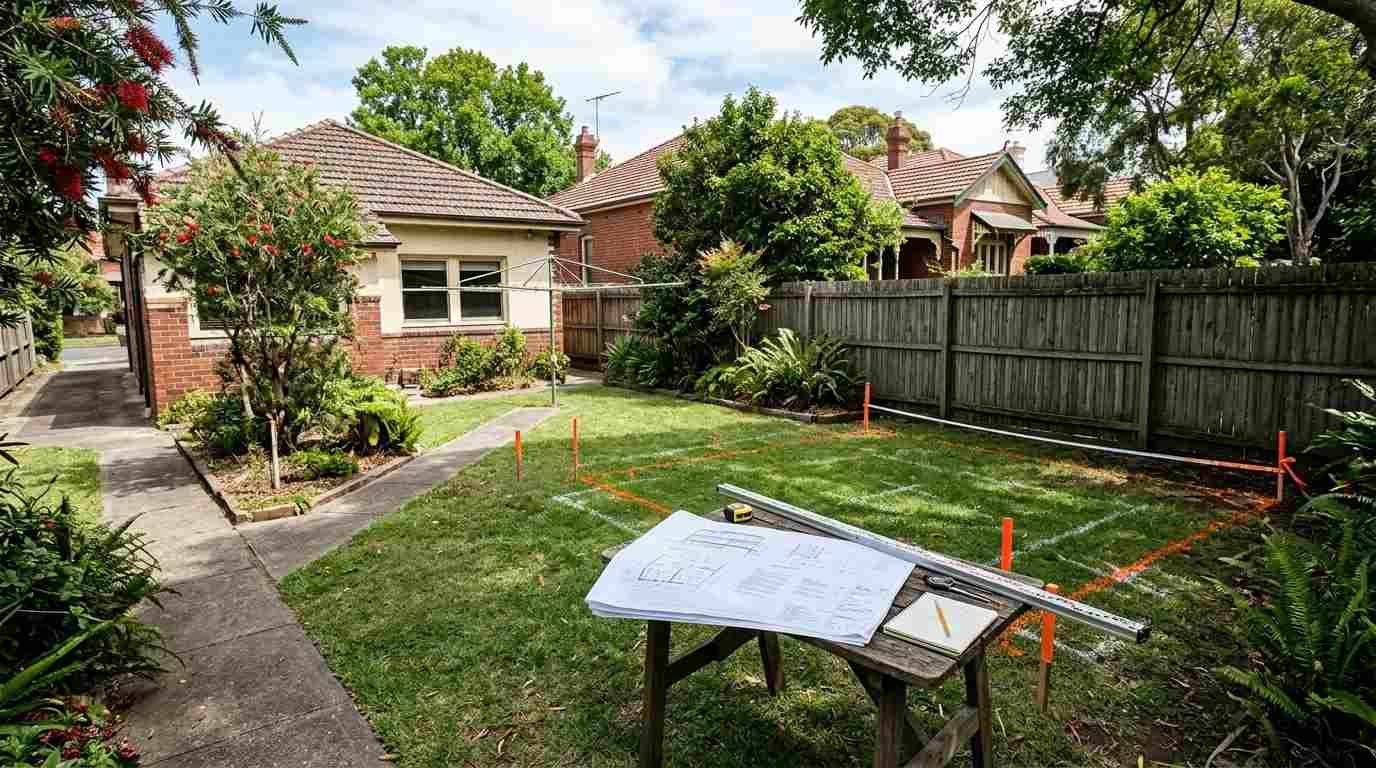

Granny Flat Approval and Regulations in Sydney
Every granny flat in Sydney needs formal approval before construction begins. The approval pathway you use affects cost, timeline, and design flexibility.
Complying Development vs Development Application
A complying development certificate (CDC) is the faster and simpler approval pathway. It is assessed by a private certifier against a set of predetermined standards. If your granny flat meets all the criteria, including size limits, setbacks, height restrictions, and lot size requirements, a CDC can be issued in as little as 10 to 20 business days.
A development application (DA) goes through your local council and involves a more detailed assessment. DAs are required when the granny flat does not meet one or more CDC criteria, or when the property is in a heritage conservation area, bushfire-prone land, or flood-affected zone. DA processing times in Sydney vary widely, from 40 to 90+ business days depending on the council and complexity.
The cost difference is notable. A CDC typically costs $2,000 to $4,000 in certifier fees. A DA can cost $3,000 to $8,000+ including council lodgement fees, and may require additional reports such as heritage assessments, flood studies, or bushfire assessments.
Size and Setback Requirements in NSW
Under the NSW Housing SEPP, a granny flat must not exceed 60 square metres of internal floor area. This measurement excludes covered outdoor areas such as verandahs and porches, provided they are open on at least one side.
The minimum lot size for a granny flat under complying development is 450 square metres. The granny flat must maintain minimum setbacks from property boundaries, typically 900mm from side and rear boundaries for a single-storey detached structure.
Maximum building height for a granny flat under CDC is 3.8 metres for a flat or skillion roof and 3.8 metres to the ceiling with no more than a specified overall height for pitched roofs. These measurements are taken from existing ground level.
Council-Specific Rules to Check
While the Housing SEPP provides the overarching framework, individual Sydney councils may have additional controls that affect your granny flat.
Some councils have minimum landscaped area requirements that limit how much of your lot can be covered by buildings and hard surfaces. Others have specific controls around parking, requiring a dedicated car space for the granny flat in addition to the main dwelling’s parking.
Heritage conservation areas impose additional design requirements. If your property is within a heritage zone, the granny flat’s external appearance, materials, and roof form may need to be sympathetic to the character of the area. This often rules out CDC approval and requires a DA.
Flood and bushfire overlays add further complexity. Properties identified as flood-prone or within a bushfire attack level (BAL) zone will need additional reports and may require specific construction standards that increase cost.
Always check your property’s planning controls through your local council’s online planning portal or request a planning certificate (Section 10.7 certificate) before committing to a design.
How to Choose the Right Type of Granny Flat
The best granny flat for your property depends on three factors: your site, your budget, and your intended use.
Matching the Granny Flat to Your Property
Start with your lot size, shape, and access. Measure the available space after accounting for setbacks from all boundaries and the main dwelling. A long, narrow rear yard may suit a linear studio or one-bedroom layout. A wider block gives more flexibility for a two-bedroom design.
Check vehicle and crane access. If your property has a narrow driveway or overhead obstructions, a modular granny flat may not be feasible. Kit or custom-built options that can be constructed piece by piece on-site are more adaptable to restricted access.
Consider orientation. Positioning the granny flat to capture northern sunlight into living areas improves comfort and reduces energy costs. This is particularly important for studio and one-bedroom layouts where the living space also serves as the bedroom.
Choosing Based on Budget and Timeline
If budget is the primary constraint, a flat pack or kit granny flat in a studio or one-bedroom layout offers the lowest entry point. Expect to spend $80,000 to $130,000 fully installed for a well-specified studio.
If time is the priority, modular construction delivers the fastest result. From slab completion to move-in, a modular granny flat can be ready in under four weeks.
If long-term value and design quality matter most, a custom-built granny flat allows you to optimise every detail for your site and intended use. The higher upfront cost is offset by a dwelling that fits the property perfectly and appeals to tenants or future buyers.
Rental Income vs Family Use
Your intended use should guide both the type and specification of your granny flat.
For rental income, prioritise features that tenants value: a separate bedroom, good natural light, adequate storage, a functional kitchen, and a private entrance. Detached granny flats with one or two bedrooms attract the strongest rental demand in Sydney. A well-located, well-finished granny flat can achieve a gross rental yield of 5% to 8% on the build cost.
For family use, such as housing ageing parents, focus on accessibility, comfort, and proximity to the main house. An attached granny flat or one positioned close to the main dwelling with a covered walkway provides convenience and connection. Consider level entry, wider doorways, a walk-in shower, and grab rails if the occupant has mobility considerations.
For property value, any well-built granny flat adds value, but detached two-bedroom designs with quality finishes tend to deliver the strongest uplift at resale. Buyers see them as a genuine income-producing asset or flexible living option.
Conclusion
Choosing the right type of granny flat comes down to understanding how construction method, layout, materials, and placement interact with your specific site, budget, and goals. Sydney homeowners have more options than ever, from fast modular installs to fully custom-designed builds.
The key is matching the granny flat type to your property’s constraints and your long-term plan, whether that is rental income, family accommodation, or adding resale value. Getting this decision right at the start saves money and avoids costly changes mid-build.
We help Sydney homeowners plan and build granny flats with confidence. Contact Sydney Home Renovation to discuss which type of granny flat suits your property, your budget, and your goals.
Frequently Asked Questions
What is the maximum size allowed for a granny flat in Sydney?
The maximum internal floor area for a granny flat in NSW is 60 square metres under the Housing SEPP. This excludes open verandahs and porches. Your lot must be at least 450 square metres to qualify for complying development approval.
How much does it cost to build a granny flat in Sydney?
Costs range from $80,000 for a basic studio to over $200,000 for a large custom-built two-bedroom granny flat. The final price depends on construction method, size, site conditions, finish level, and services connection distances.
Do I need council approval to build a granny flat?
Yes. Every granny flat requires either a complying development certificate from a private certifier or a development application through your local council. A CDC is faster and cheaper but requires the design to meet all predetermined standards.
Which type of granny flat is cheapest to build?
Flat pack and prefabricated kit granny flats in a studio layout are the most affordable options. Expect a fully installed cost starting from around $80,000 to $100,000 in Sydney, depending on site conditions and specification.
Can I rent out my granny flat in Sydney?
Yes. Granny flats in NSW can be rented to tenants. There are no restrictions on who can occupy a granny flat, and it does not need to be used by a family member. Rental income from a granny flat is assessable for tax purposes.
How long does it take to build a granny flat?
Timelines vary by construction method. Modular granny flats can be installed in one to four weeks after the slab is ready. Custom builds take 12 to 20 weeks on-site. Add four to twelve weeks for approvals and site preparation before construction begins.
What is the difference between a modular and a prefabricated granny flat?
A modular granny flat is fully built in a factory and delivered as a complete unit. A prefabricated or kit granny flat arrives as pre-cut components that are assembled on-site by a builder. Modular is faster to install but requires good site access for crane delivery.
